Using Third Party Broadcasting Software in the new TalkShopLive Streaming

  • Updated



Overview

Real-Time Messaging Protocol (RTMP) is a widely used protocol for streaming audio, video, and data over the Internet. By leveraging third-party software like OBS Studio, Restream, and Wirecast, you can create professional live streams in TalkShopLive Studio and broadcast them to multiple social media destinations simultaneously. This guide will walk you through the steps to set up and use these tools for RTMP live streaming.



Prerequisites

  • A computer with a stable internet connection
    • We recommend an ethernet connection over a Wi-Fi connection where possible
    • Note: Your upload speed has to be at least 10 Mbps (megabits per second) to have a decent livestream. Check out any internet speed tests and pay attention to the upload, not download, speeds.
  • We support three third-party solutions:
    • OBS
    • Wirecast
    • Restream
  • These instructions assume you have completed your show setup

On TalkShopLive

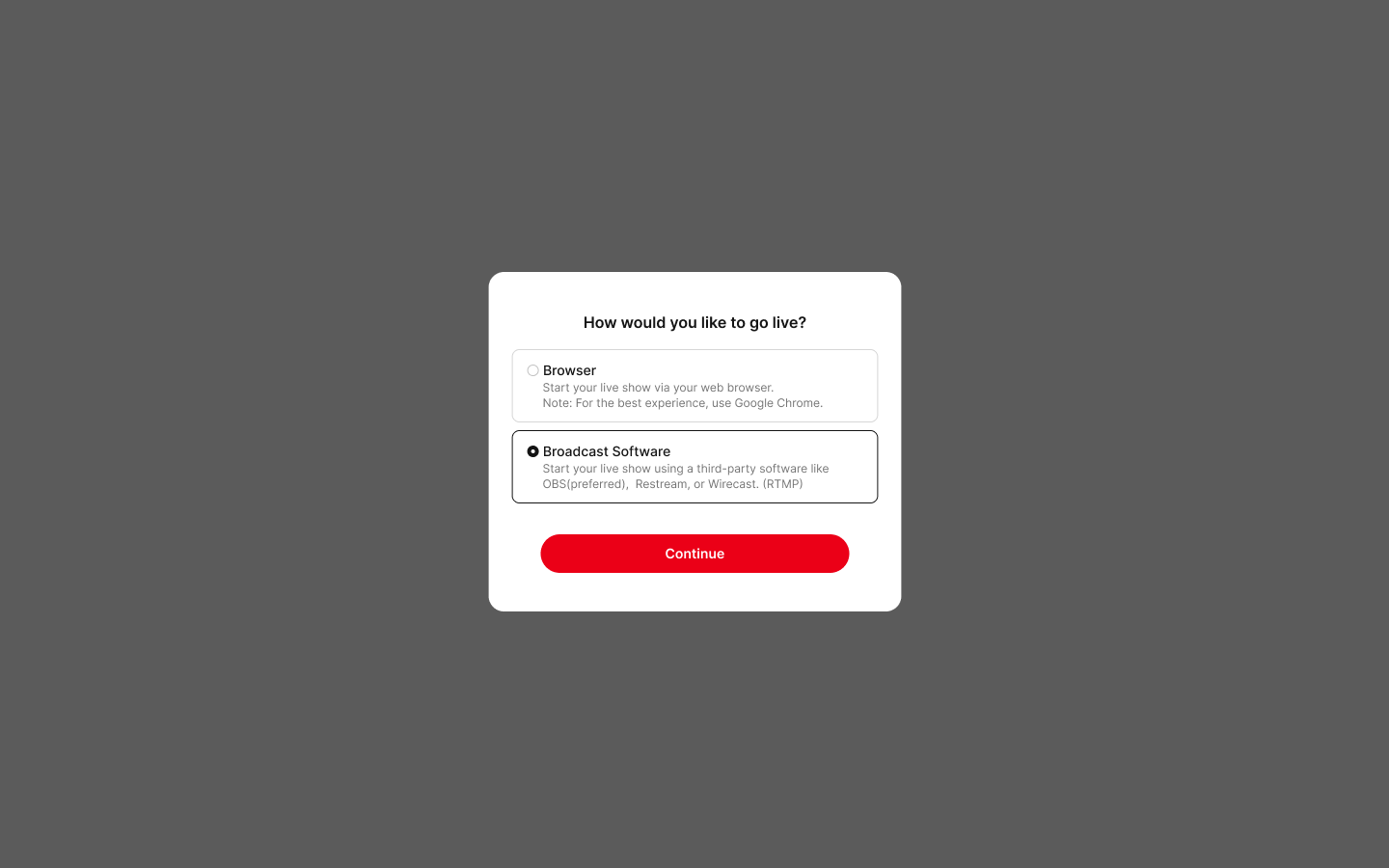

  • When starting your test or live show using TalkShopLive Streaming - Enhanced, you will need to have selected "Broadcast Software" for how you plan to go live. See screenshot below:

Studio Web_RTMP.png

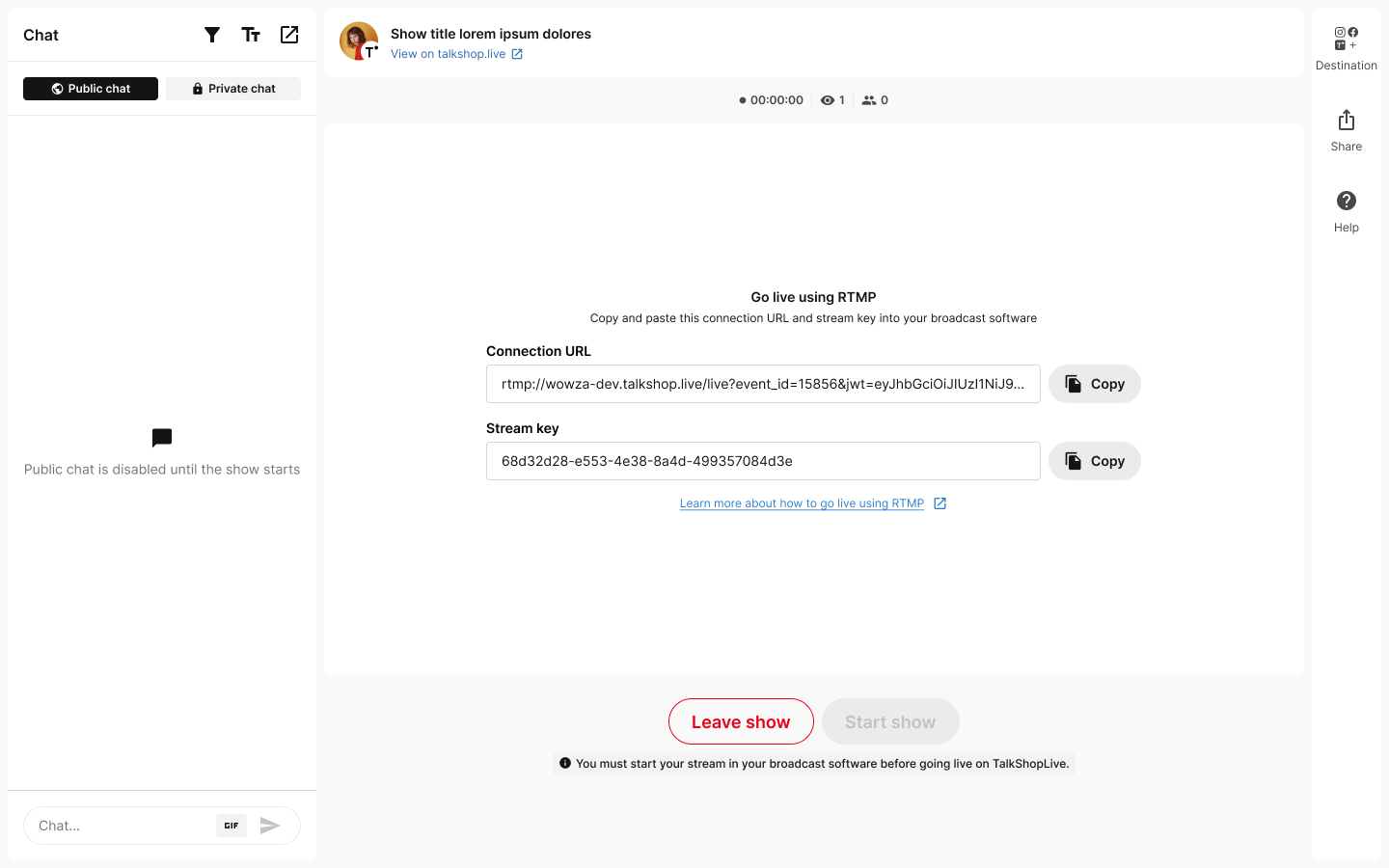

  • Our system will generate your RTMP URL and Key. You will need to input this information to your broadcasting software

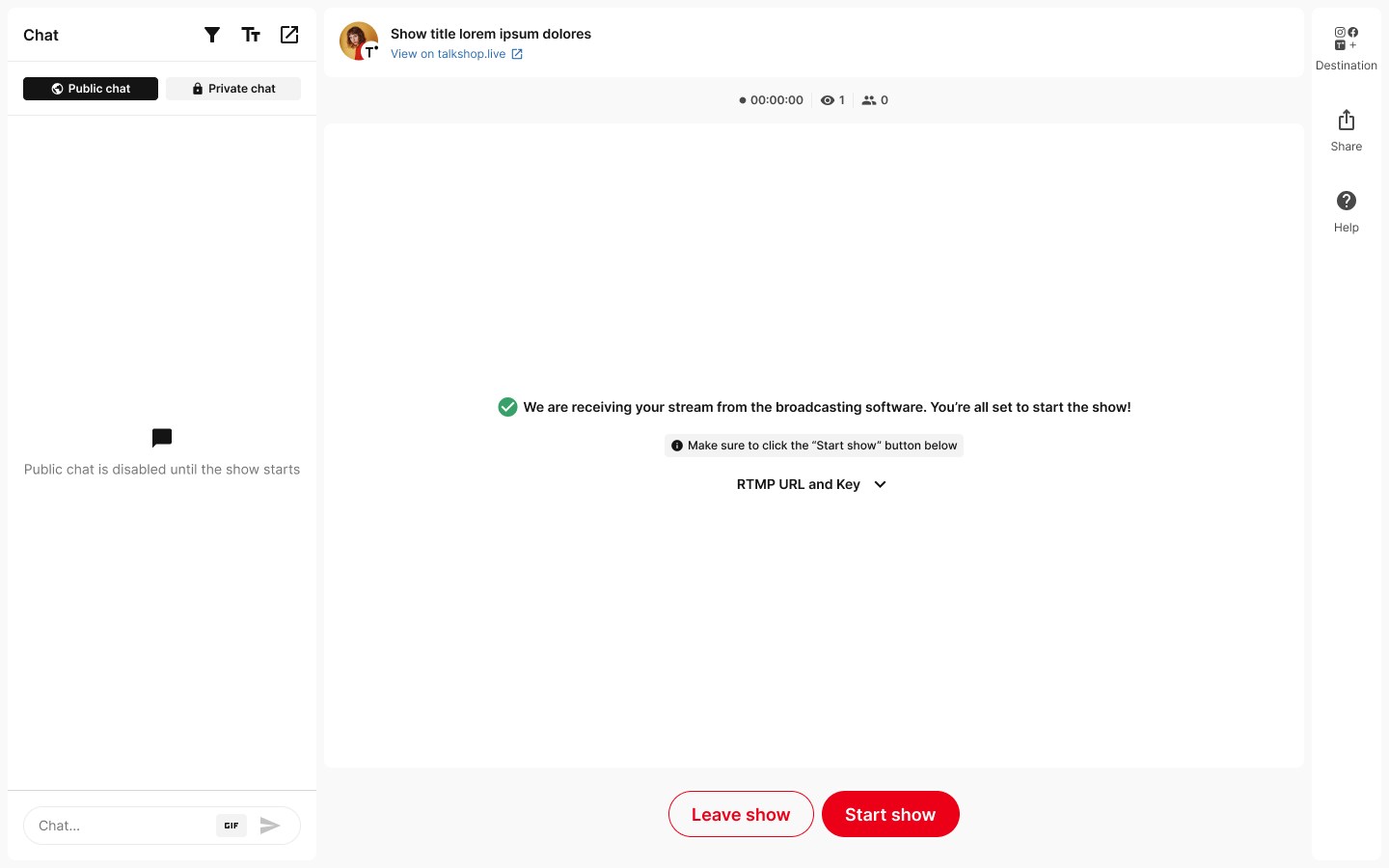

  • Once you've put your RTMP URL and Key in your broadcasting software, you will need to start the stream in your software. You will receive confirmation on TalkShopLive that we are receiving your stream. Now you can start the show!

RTMP - receiving stream state.png

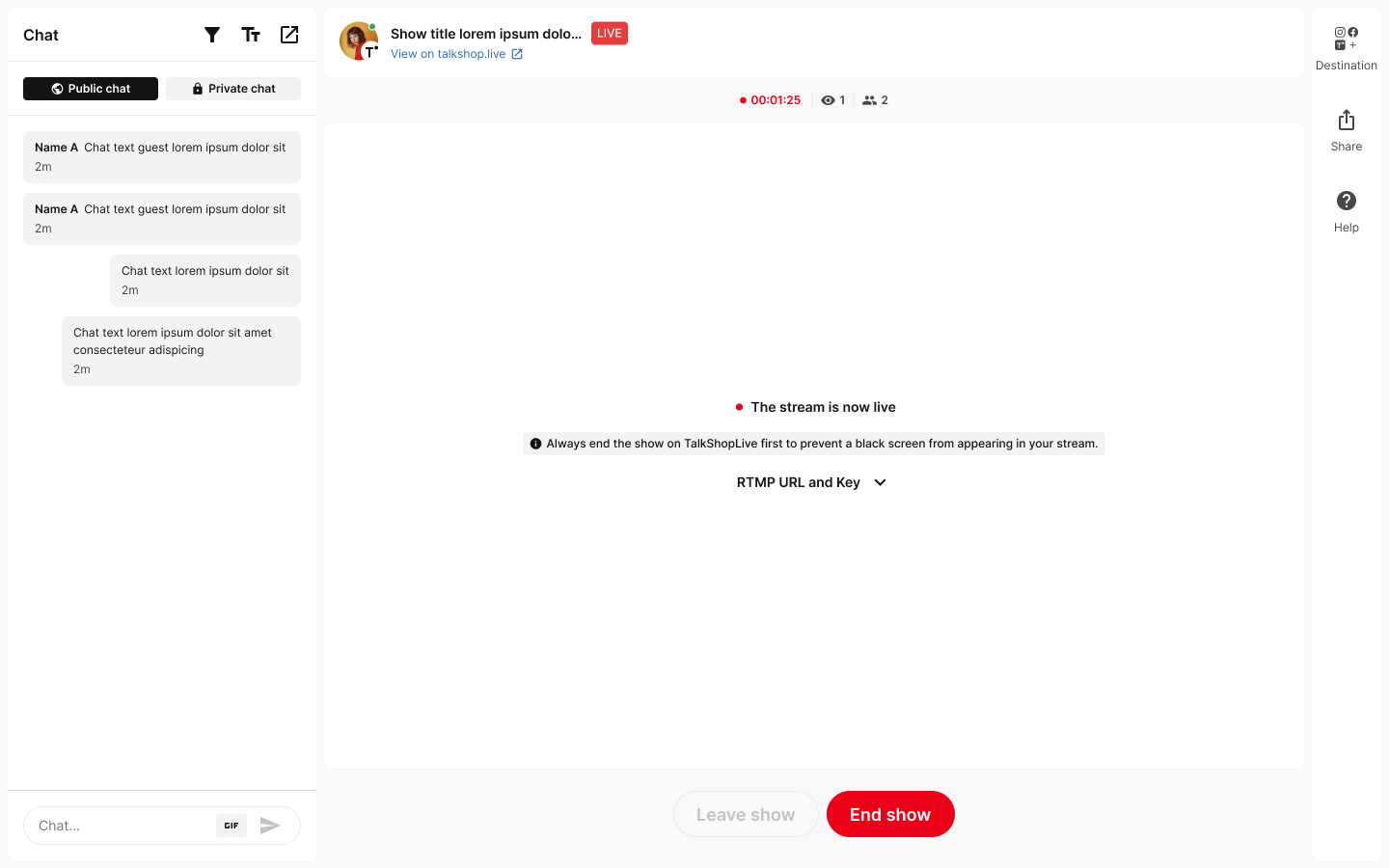

  • Whilst your show is live, you will send an animated red light. When you are done, you can end the show.
    • Note on ending the show: Ensure to end the show in TalkShopLive first, and then end the stream on your broadcasting software.

RTMP - stream is live state.png



RTMP Ingress on OBS

Configuring OBS Studio for RTMP



  1.  Open OBS Studio
  2. Access Settings:
    • Click on “Settings” located at the bottom-right corner.
  3. Set Up the Stream
    • Navigate to the “Stream” tab.
    • In the “Service” dropdown menu, select “Custom…”.
    • Input Stream Information:
      • Server: Enter the RTMP server URL provided by TalkShopLive
      • Stream Key: Enter your unique stream key from the platform.



Setting Up Scenes and Sources

  1. Create a Scene:
    • In the “Scenes” panel, click the ”+” button to add a new scene.
  2. Add Sources:
    • In the “Sources” panel, click the ”+” button.
    • Choose the type of source you want to add (e.g., “Display Capture”, “Video Capture Device” for webcams).
  3. Configure Sources:
    • Adjust the settings for each source as needed (e.g., select the correct display or camera).



Starting the Stream

  1. Preview the Stream:
    • Ensure all scenes and sources are set up correctly.
  2. Start Streaming:
    • Click on “Start Streaming” in the main window.
  3. Monitor the Stream:
    • Use the “Stats” window (under “View” > “Stats”) to monitor stream health.
  4. End the Stream
    • Only end the stream once you have ended the show in TalkShopLive

For Wirecast and Restream, you will follow similar steps.



Tips and Best Practices

  • Test Before Going Live: Always perform a test show to check audio and video quality. That feature is available in TalkShopLive for all your live shows.
  • Stable Internet Connection: Use a wired connection to minimize latency and dropped frames.
  • Optimize Encoding Settings: Balance quality and performance by adjusting bitrate and resolution.
  • Monitor System Resources: Keep an eye on CPU and memory usage to prevent overloading your system.
  • Engage with Your Audience: Use chat and interaction features to engage viewers during your live show on TalkShopLive.
  • Stay Updated: Keep your software up to date for the latest features and security patches.
